Did you mean: MPXM2202A
Product Datasheet Search Results:

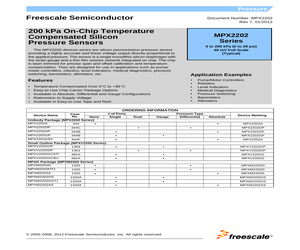

19 Pages, 294 KB, Original- MPXM2202AT1
- Freescale Semiconductor
- SENS PRESSURE 29 PSI MAX MPAK - MPXM2202AT1
Product Details Search Results:
Freescale.com/MPXM2202A
{"Category":"Sensors, Transducers","Termination Style":"PCB","Catalog Drawings":"MPXM2(0,1,2)xx(A,D) Top MPXM2(0,1,2)xx(A,D) Side","Operating Temperature":"-40\u00b0C ~ 125\u00b0C","Output Type":"Wheatstone Bridge","Package / Case":"5-SMD Module","Accuracy":"-","Product Photos":"MPAK","Pressure Type":"Absolute","Datasheets":"MPX2202 Series","Standard Package":"75","Port Style":"No Port","Maximum Pressure":"58.02 PSI (400 kPa)","Operating Pressure":"29.01 PSI (200 kPa)","Output":"0 mV ~ 40 mV (10V)","Online ...
1659 Bytes - 04:32:16, 15 October 2025
Freescale.com/MPXM2202AS
{"Category":"Sensors, Transducers","Termination Style":"PCB","Catalog Drawings":"MPXM2(0,1,2)xx(AS,GS) Top MPXM2(0,1,2)xx(AS,GS) Side","Operating Temperature":"-40\u00b0C ~ 125\u00b0C","Output Type":"Wheatstone Bridge","Package / Case":"5-SMD Module","Accuracy":"-","Product Photos":"MPXM2051GS","Pressure Type":"Absolute","Datasheets":"MPX2202 Series","Standard Package":"660","Port Style":"Barbless","Maximum Pressure":"58.02 PSI (400 kPa)","Operating Pressure":"29.01 PSI (200 kPa)","Output":"0 mV ~ 40 mV (10...
1708 Bytes - 04:32:16, 15 October 2025
Nxp.com/MPXM2202A
{"Overload Pressure (Max)":"400KPa","Mounting":"Surface Mount","Output Voltage Range":"0 TO 0.04(V)","Rad Hardened":"No","Packaging":"Rail/Tube","Operating Temp Range":"-40C to 125C","Package Type":"M-PAC","Operating Supply Voltage (Max)":"16(V)","Operating Supply Voltage (Typ)":"10(V)","Type":"Absolute","Pin Count":"4 +Tab"}...
1413 Bytes - 04:32:16, 15 October 2025
Nxp.com/MPXM2202AS
{"Overload Pressure (Max)":"400KPa","Pressure Range":"20KPA TO 200KPA","Mounting":"Surface Mount","Output Voltage Range":"0 TO 0.04(V)","Rad Hardened":"No","Packaging":"Rail/Tube","Operating Temp Range":"-40C to 125C","Package Type":"M-PAC","Operating Supply Voltage (Max)":"16(V)","Operating Supply Voltage (Typ)":"10(V)","Type":"Absolute","Pin Count":"4 +Tab"}...
1454 Bytes - 04:32:16, 15 October 2025
